Photovoltaics at the UFZ
The UFZ is increasingly relying on independent electricity production using photovoltaics (PV) and the increased use of renewable energies at its locations in Leipzig, Magdeburg and Bad Lauchstädt. Further photovoltaic systems, including at the Halle site, are currently in the preliminary planning stage.
This page is under construction. An automated display of further PV metrics will follow.
This page is under construction. An automated display of further PV metrics will follow.

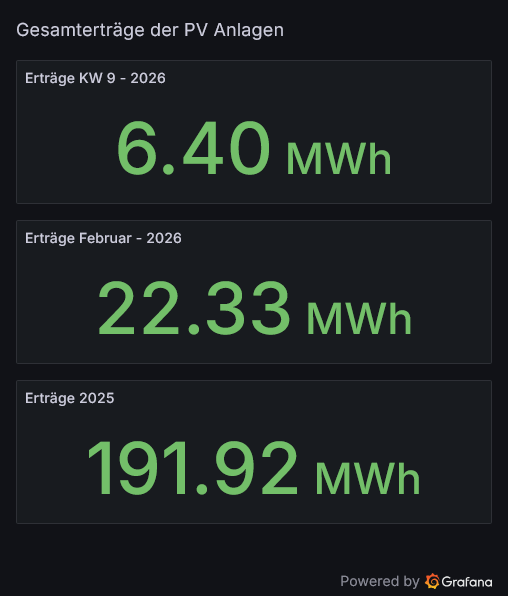

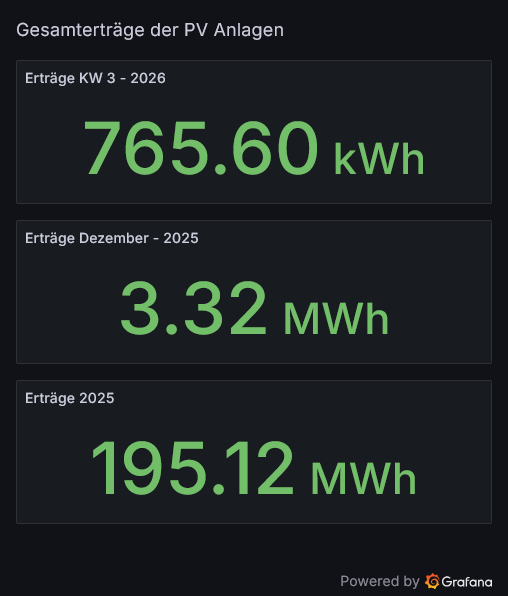

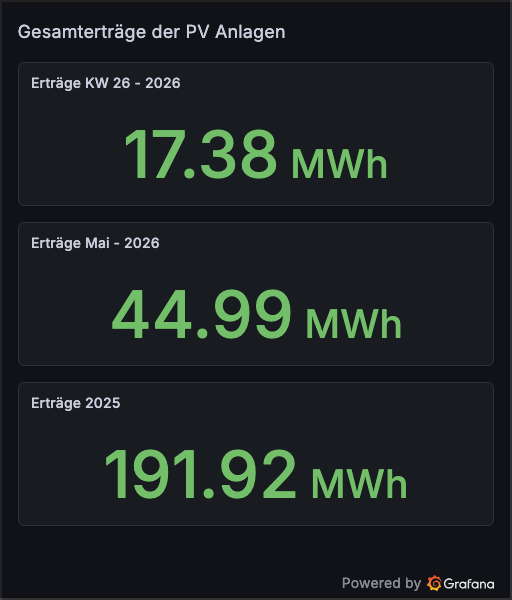

Total revenues of the locations
Total revenues from the plants Leipzig - Building 19.6, Leipzig - Building 19.7, Magdeburg and Bad Lauchstädt
Leipzig, Building 6.1
Photovoltaic system at the Location Leipzig
Technical data
| Comissioning | June 2011 |
| Number of modules | 100 pcs |
| Type / Facade | Siliken, 23,5 kWp |
| Power output | 23,5 kWp |
| Cell surface area | 120 m² |
| Solar entry DC | 146.356 kWh |
| Special annual income | 975 kWh/kWp |
| Annual yield AC, supply to the electric meter | 22.913 kWh/a |
Leipzig, Building 7.1
Photovoltaic system at the Location Leipzig
Technische Daten
| Comissioning | August 2011 |
| Number of modules / Roof | 28 pcs |
| Type / Roof | Scheuten Multisol, 230 Wp |
| Power output / Roof | 6,44 kWp |
| Number of modules / Facade | 20 pcs |
| Type / Facade | Scheuten Multisol, 256 Wp |
| Power output/ Facade | 5,12 kWp |
| Total power output | 11,56 kWp |
| Cell surface area | 88,8 m² (48,2 m² + 40,6 m²) |
| Solar entry DC | 88.033 kWh |
| Special annual income | 985 kWh/kWp |
| Annual yield AC, supply to the electric meter | 11.386 kWh/a |
Leipzig, Building 7.3
Photovoltaic system at the Location Leipzig
Technical data and metrics for the PV system of Leipzig, Building 7.3 will follow.
Leipzig, Building 19.6
Photovoltaic system at the Location Leipzig
Technical data
| Comissioning | September 2023 |
| Power output roof - north | 25 kWp |
| Power output roof - south | 50 kWp |
| Total power output | 75 kWp |
Leipzig, Building 19.7
Photovoltaic system at the Location Leipzig
Technical data
| Comissioning | September 2023 |
| Power output roof - north | 21 kWp |
| Power output roof - south | 21 kWp |
| Total power output | 42 kWp |
Magdeburg
Photovoltaic system at the Location Magdeburg
Technical data
| Comissioning | January 2024 |
| Total power output | 100 kWp |
Halle
The Location Halle
A PV system is also to be added at the Halle site. Preliminary planning for this is currently underway.

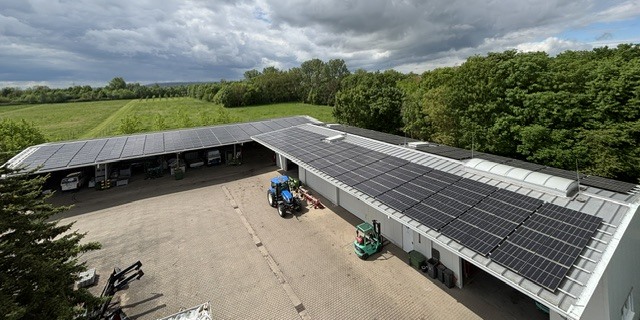

Bad Lauchstädt
Technical data
| Comissioning | November 2023 |
| Number of modules | 533 pcs |
| Type / Roof | IBC MonoSol 330 und 420 |
| Total power output in kWp (peak) | 209,55 |
| Cell surface area in qm (only modules) | 998,62 |
The returns shown may differ from the actual returns due to incomplete data, failures and errors.
